DA/JR Propo Kill Switch 12V

【set content】

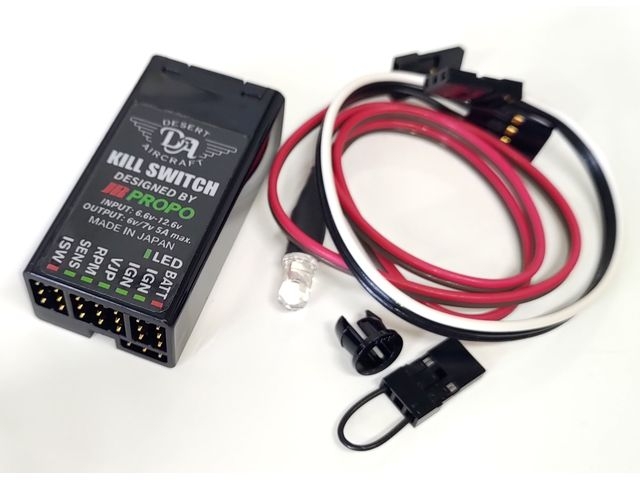

● Main unit ● Monitor LED ● LED holder ● Connection cable x1 ● Jumper plug ● Instruction manual

Ignition switch for gasoline engine.
It is possible to connect to the ignition unit, supply stable power to the spark plug, and turn the power supply on and off from the transmitter.
Since the receiver signal and ignition control signal are controlled separately, malfunction due to noise is prevented.
It is possible to set the engine cut when it does not return from the fail safe for a certain period of time by the program of the transmitter.
Hybrid type compatible with XBUS/PWM communication method.
Attach the included high-brightness LED to the outside of the fuselage, so you can check whether the ignition switch is on or off even during flight.
Built-in LED for confirmation of rotation detection.

spec
[Kill switch part]
Input voltage DC6.6V – 12.6V (LiPo 2S-3S)
Output voltage　DC6.0V / 7.0V *Voltage is variable with jumper pin (V JP)
Output current 4.0A (5.0A at maximum output)

[Tachometer]
Detection method Pulse detection method
Detection range 500rpm – 50,000rpm
Operating voltage 4.0A – 12.6V
Weight 12g
Dimensions 15x25x47mm
