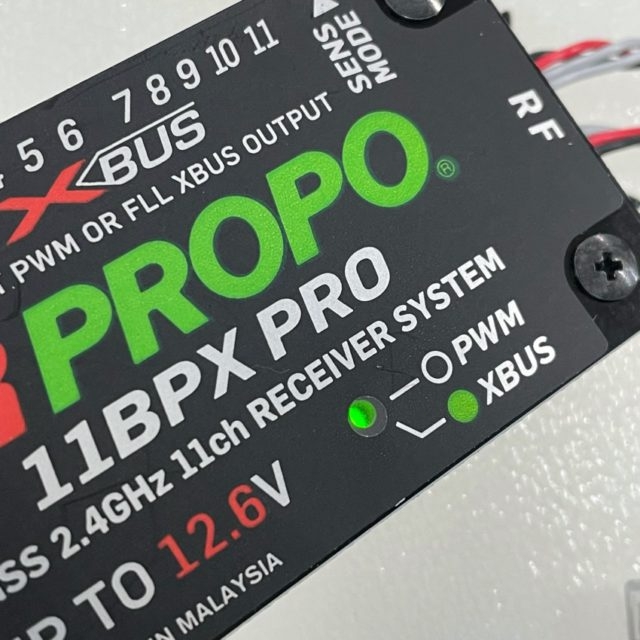

JR Propo 11BPX PRO – 11ch DMSS Receiver Deans connector

Product Name: 11BPX PRO

NB! It is not recommended to have the receiver connected to batteries when not in use.

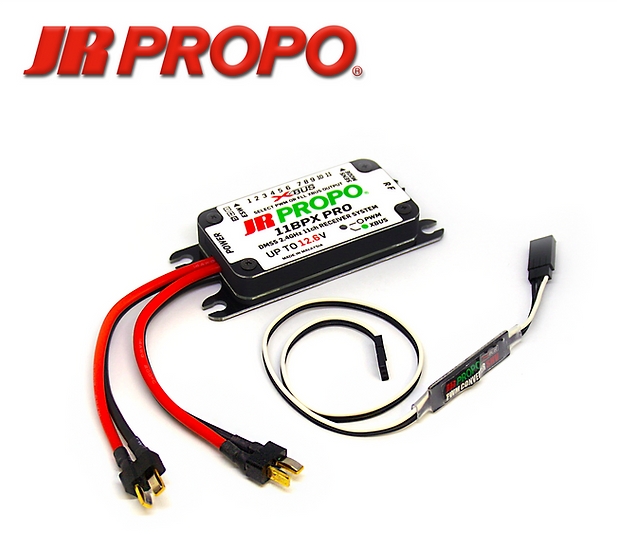

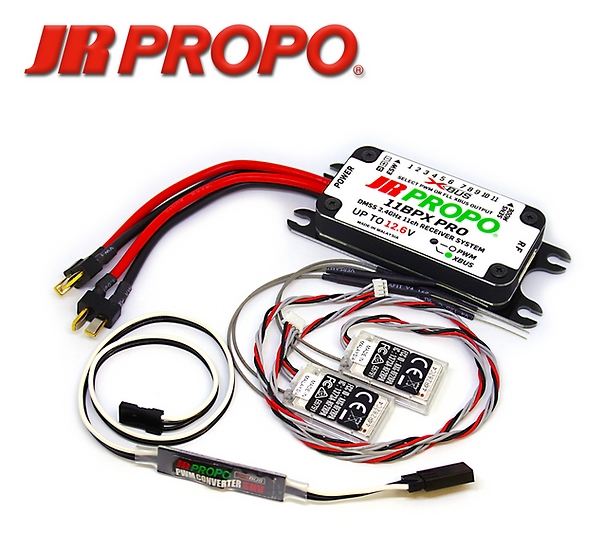

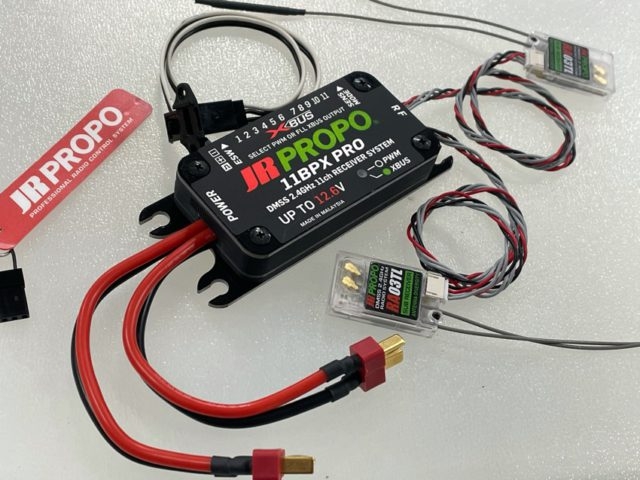

It comes with: 2 satellite receivers, 1 E-switch and 1 CV1 cable.

There are 11 PWM/XBus ports.
You can switch between PWM/Xbus by rebounding the receiver.
11BPX Pro ports can become all XBus ports, therefore CV1 cable is included in the package for throttle (PWM usage).

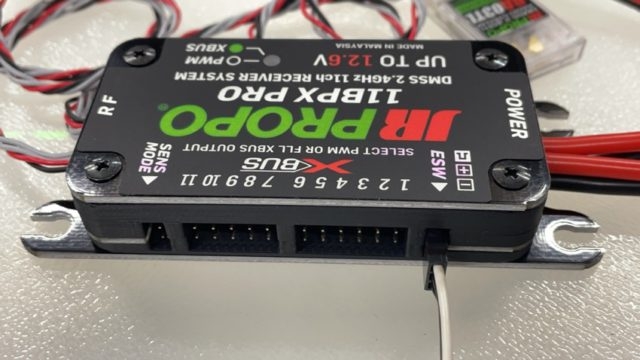

Dimensions: 40 x 76 x 16.5 mm. Length is 100 mm including mounting brackets.

Weight:

Voltage: 12.6V or less

Communication method: DMSS 2.4GHz

Connection port: 11ports (PWM 1-11ch / All XBUS)

A hybrid system that can change the mode of PWM 11ch and all port
XBus outputs using the DMSS 2.4GHz system.

Equipped with a new circuit and firmware that can perform XBUS servo settings more smoothly.

Equipped with a dual battery system. High-efficiency system that monitors the voltage of the two connected batteries and switches power supply in a balanced manner to prevent bias in power consumption.

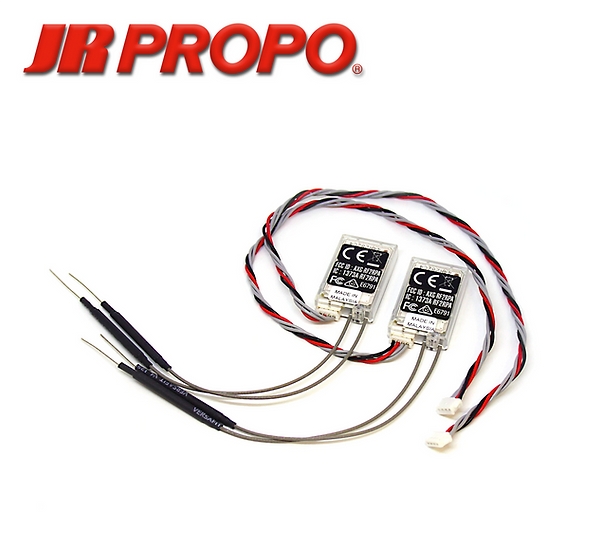

Build a dual receiver system equipped with two sub-receiver RA03TL for DMSS

Equipped with an electronic switch

Current capacity of up to 60A

Easy binding system

12V super high voltage compatible

* THIS PRODUCT DOES NOT HAVE A REGULATOR FUNCTION. WHEN USING A 12V BATTERY, BE SURE TO USE A SERVO COMPATIBLE WITH 12V
