Replacement for RA02TL.

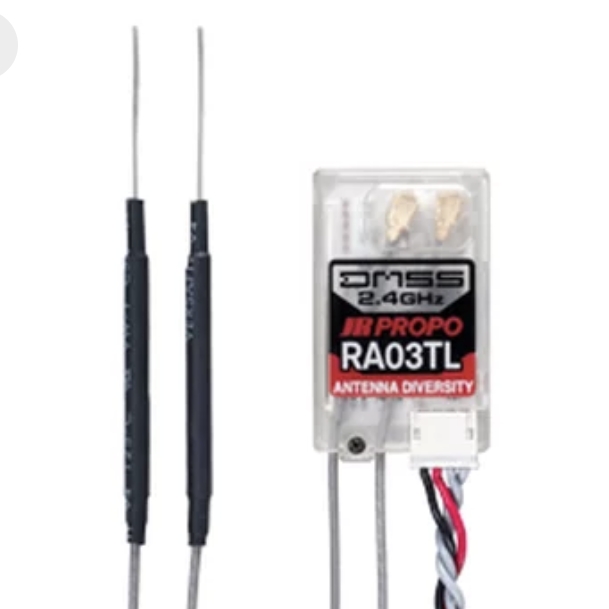

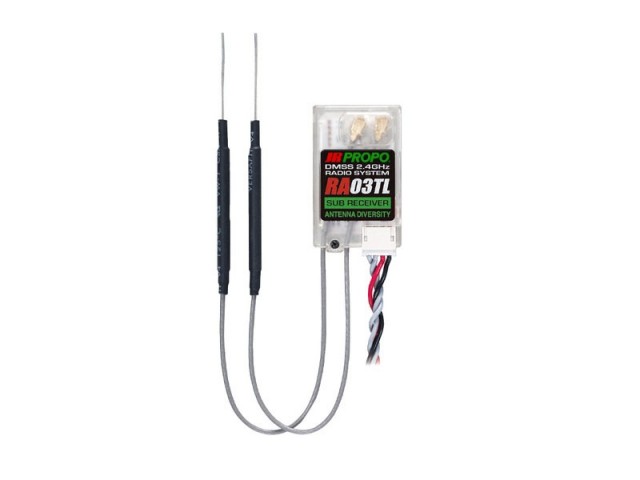

The DMSS 2.4GHz extra receiver JR RA03TL (ER031) (diversity antenna) uses the same RF board as a normal receiver. If connected to a receiver, it means that two full-range receivers are installed, and the reception performance can be easily improved.
- DMSS Remote Antenna for 2.4GHz Receiver (Diversity antenna Type)
- Dimensions: 6 x 19.5 x 32 mm
- Voltage Range: 4,5V-8,5V
- Wire Length / Antenna : Coaxial potion 120mm / Antenna position 25mm
- Weight: 6g
- Mounted telemetry transmission module supports full range of distance.
- Remote Extension (150mm) included
- * Binding (Pairing) process needs to be carried out before use.
Conversion compatibility :
2.4GHz DMSS receiver mounting remote antenna connector.
