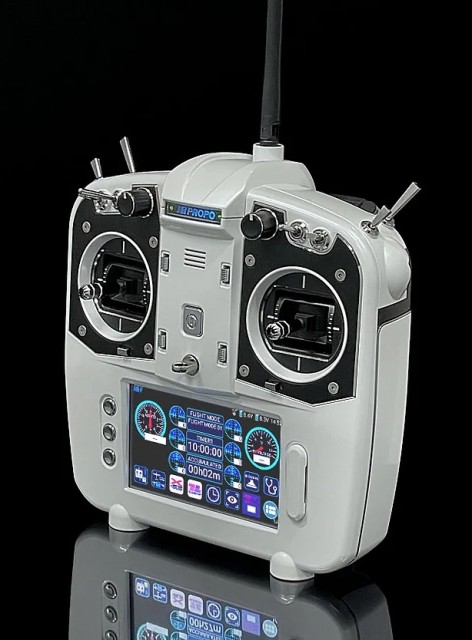

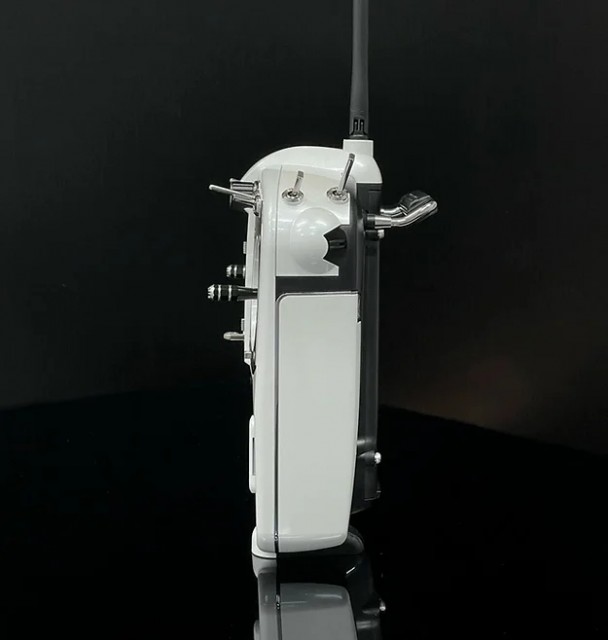

Inheriting the performance of the world's most reliable JR PROPO DMSS 2.4GHz R/C system "ELITE". The lightweight version "MATRIX22" is the new arrival of the DMSS radio series. Equipped with a stable application control OS-A and OS-B for communication control, further programming accumulated from JR PROPO's 40-year history. The performance on the processing speed of the program is greatly improved. The easy-to-handle flat design creates the ultimate in operability. The 2.5mm front metal garnish and metal gimbal base maintain rigidity and reduce weight with a plastic gimbal. The radio control method can be selected between the conventional PWM method and the JR own serial protocol bus communication of "XBus" The XBus function is equipped with a servo ID scanning function that makes it easy to check the setting of Servo ID that could not be confirmed with previous transmitters.
Modulation method: DMSS (Dual Modulation Spectrum System)
Operation method: 22 Channel Computer Mixing
Frequency modulation: 2.4GHz
Power supply: 7.2V lithium-ion battery 2L3350mA (2 batteries can be installed)
Neutral: 1.5ms
Included AC adapter: JAC-A1220
・Input voltage: AC100V-240V 50/60Hz
・Output voltage: DC12V 2.0A 24W
Weight: 870g (not including battery)
65,536 step stick resolution
16-bit color output Dual processors
Features

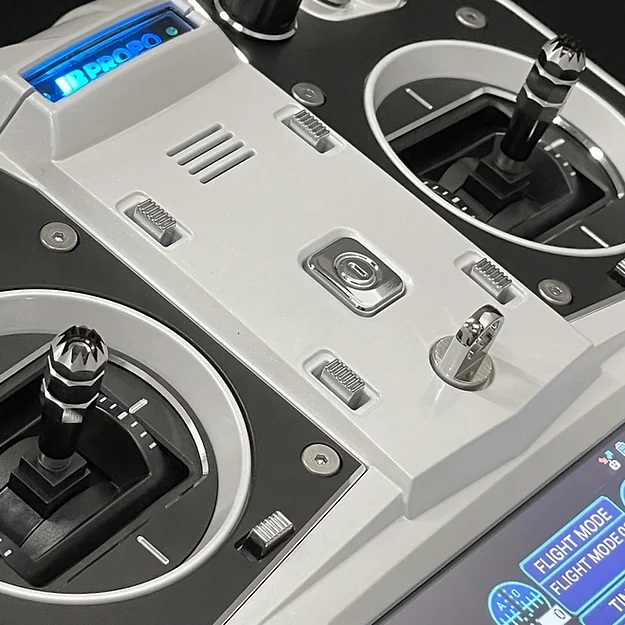

■ CNC machined and painted transmitter case components

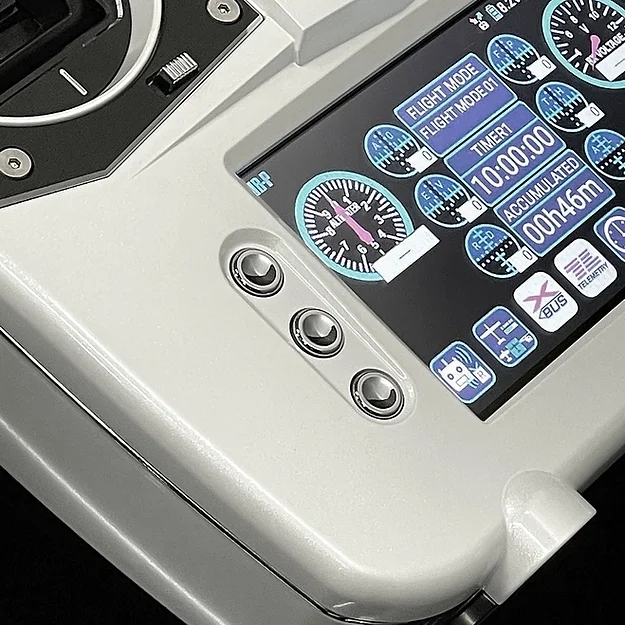

■ Quick response touch screen

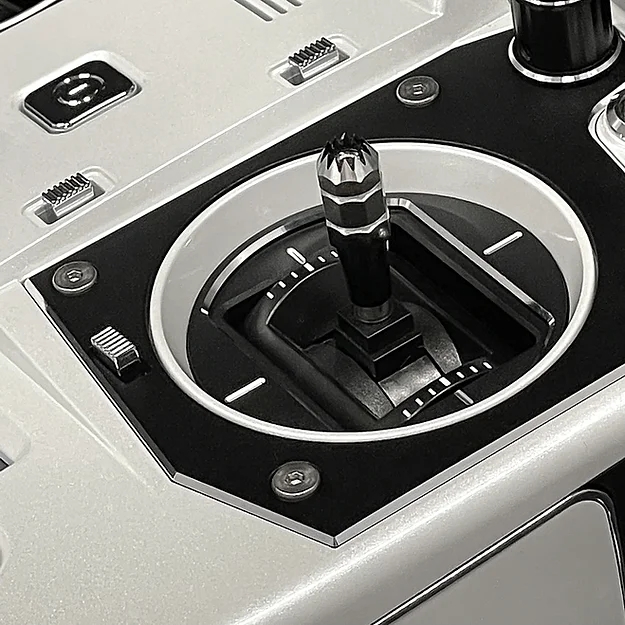

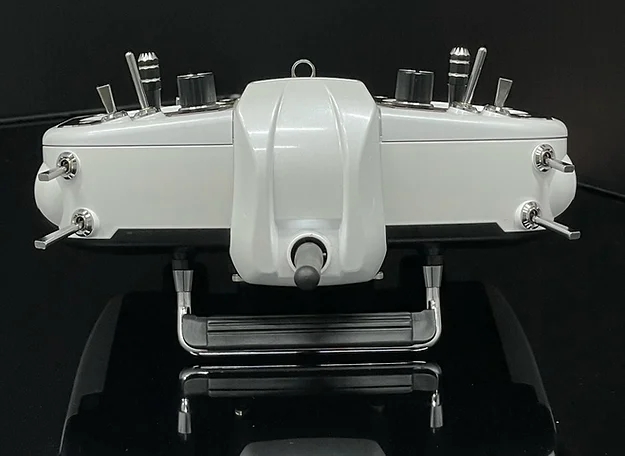

■ Precise CNC & Plastic Hybrid gimbals
■ High resolution Stick Control
■ The latest Android format & new main mother board
■ 22 channels in PWM mode / 64 channels in XBUS
■ The latest XBUS communication installed
■ Upgraded telemetry sensor capability/each telemetry function can handle 8 sensors
■ Voice alerts
■ XBUS Servo Programmer installed
■ Sequencer function for landing gear
■ SD Card slot available
■ USB Port Equipped (Capable to use PC Mouse operation)
-
BASIC
【Function List】
■Reverse Switch
■D/R & EXP (Dual rate, Exponential)
・2segment / maximum15systems（SW Select / each flight mode）
・Type selectable（NORM / CURVE）
・・Curve set up： Mid8points over multi points
・Position set up：Maximum 15systems
[Sub Menu]
・・・Delay Setting
・・・Auxiliary Channel
■SUB TRIM
■Travel adjusts
■Monitor (Servo monitor)
[Sub Menu]
・・・Detail of channel
・・・Servo Test（Neutral/Slow/Quick/Step）
■LIMIT ADJUST
■SERVO SPEED
・right & left （up or down） Capable to put 2segment
・2systems
■OUTPUT CURVE
・Mid8points over multi points
[Sub Menu]
・・・TRIM INPUT SETTING
■THROTTLE TRIM
・Throttle Cut （W/ Time lag function）
・Throttle Trim Memory
・Idle Adjustment
■PROGRAM MIXING
・Maximum 10systems （SW select / each flight mode）[W/Exponential]
・Type selectable (Normal/Curve)
・・Curve set up : Mid8points over multi points
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■TIMER
・3systems (Down timer/ Stop Watch)
・SW Select （Comply w/ Stick Position Switch）
・capable to set vibrator
[Sub Menu]
・・・Interval Timer
・・・Accumulation Timer , Initialize
・・・Timer record: 20files
【System List】
■MODEL SELECT
・Model Memory： Maximum 100files
[Sub Menu]
・・Backup And Restore
・・Sort
・・Display Mode
■CHANNEL SETTING
[Sub Menu]
・・・Aux Channel Setting：Up To 28ch
■TYPE SELECT
・3 Types（Airplane / Helicopter / Glider）
■FAIL SAFE
・HOLD / F.S Selectable
■WARNING
・SW SEL. / Capable to set on each flight mode
■BIND ＆ RANGE
・Model Link Bind
・Range Check
■FM SETTING
・Up To 15 Ways
[Sub Menu]
・・・Priority Setting
■XBUS SETTING
・Type Select（MODE A -JR / MODE B）
<Setting >
・Servo / Convertor
・・・ID Setting / Parameter set up
・・・ID Scan function
・Acro Gyro（AIR-P / AXIS being used）
■FM Delay
・Common set up / Independent set up
・Delay set up: Maximum delay in 10.sec
[Sub Menu]
・・・Active channel set up
■TRIM SYSTEM
・Device Select
・Reverse
・Type Setting（NORM / L.S.T.）
・Trim Motion SW select（each flight mode）
[Sub Menu]
・・・Flight Mode Group Setting
■All Servo Hold
・ON / OFF
■TRAINER
・Mode :2systems：Normal / Program
・Trainer Function mode SW select（each flight mode）
■ANALOG POSITION
・10systems
・Motion Switch select： Device/channel
■TX SETTING
<Battery>
・Priority Setting：A&B Simo / Batt A / Batt B
・Low Battery Alarm（Default：6.0V）
<Idle Alert>
・Latency：Up To 254min（Default：30min）
<System Sound>
・Tone（HIGH / LOW）
・Volume（Default：10）
<BED BRIGHTNESS＞
・Brightness（HIGH / LOW）
<Firmware Version>
[Sub Menu]
・・・Stick Calibration
■STICK ALERT（Only Throttle Ch.）
・3systems
・Alert motion SW select（Each flight mode）
■HARDWARE SETTING
・Reverse
・Input Type（Displayed value） select (analog) displayed value, select（analog）
・Calibration (Analog）
・Position setting （switch）
[Sub Menu]
・・・Stick Mode Setting（M1 / M2 / M3 / M4）
■TELEMETRY LOG
・multiple data display
-
FUNCTION FOR AIRPLANE
【Function List】
■DIFFERENTIAL
・Position Setting：Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■THROTTLE CURVE
・Maximum 15systems
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・Throttle Trim Offset
■AILE → RUDD MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・Break / Hold Setting
■PITCH CURVE
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■AILE → FLAP MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・AIL Trim Setting
■FLAP SYSTEM
・SW select / each flight mode
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■ELEV → FLAP MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■THROTTLE HOLD
・SW selectable
■RUDD → AILE / ELEV MIX
・Position setting：2systems（SW select / each flight mode）
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■SNAP ROLL
・Roll set up：4systems（SW select / each flight mode）
・Stick position SW
■GYRO SENS
・Gyro mode selection Normal /Tail lock
・・Two gyro / Dual gain : setting possible when selected w/ 2ch control
・・3 axis gyro mode :when selected as 3channel
・Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Lift up Setting.
・・・Trim Input Setting
■GEAR CONTROL
・ Mode selection ：single mode/separate mode
・Maximum 3systems （Compatible w/ Gear cover A/B control）
【System List】
■WING TYPE
・WING：14 Types
・・1 AILERON / FLAPERON / 2 AILERONS
2 AILERONS + 1 FLAP / 2 AILERONS + 2 FLAPS
2 AILERONS + 4 FLAPS / 4 AILERONS
4 AILERONS +1 FLAP/ 4 AILERONS +2 FLAPS
DELTA / DELTA+1 FLAP / DELTA+2 FLAPS
DELTA / 4 FLAPS
・TAIL：4 Types
・・1 ELEVATOR + 1 RUDDER / 2 ELEVATORS + 1 RUDDER
2 ELEVATORS +2 RUDDERS / V TAIL
・THROTTLE：4 Types
・・1 THROTTLE / 2 THROTTLES
3 THROTTLES / 4 THROTTLES
-
FUNCTION FOR HELICOPTER
【Function List】
■THROTTLE CURVE
・Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・TRIM INPUT SETTING）
・・・Hovering throttle setting (Point selection possible)
・・・Throttle trim off set
・・・ Curve type setting （NORM / GOV）
■PITCH CURVE
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・High Pitch trim setting （SW select / each flight mode）
・・・Hovering pitch trim setting (Point selection possible)
■THROTTLE MIXING
・AILE → THRO Correction
・ELEV → THRO Correction
・RUDD → THRO Correction
・・each 2 systems
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■THROTTLE HOLD
・2systems setting capable
・SW select
・Stick auto setting
・Delay Setting
■SWASH MIXING
・w/ exponential
[Sub Menu]
・・・E-Ring Setting
・・・Mixing Correction Setting
・・・・AILE → ELEV
・・・・ELEV → AILE
・・・・PIT → AILE
・・・・PIT → ELEV
・・・・・each 2 systems
・・・・・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu2]
・・・Delay Setting
・・・Trim Input Setting
■GYRO SENSE
・Gyro Mode Select：Normal / Tail Lock
・・Two Gyros / Dual Gain： setting possible when selected w/ 2ch control
・・3 axis gyro mode :when selected as 3channel
・Maximum 15systems （SW select / each flight mode）
[Sub Menu]
・・・Delay Setting
・・・LIFT UP SETTING
・・・Trim Input Setting
・・・CALIBRATION
■GOVERNOR
・Position Setting：Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
【System List】
■SWASH TYPE
・12 Types
・・NORMAL / 2 SERVOS 180° / 3 SERVOS 120°（2） / 3 SERVOS 135°（2）
3 SERVOS 140°（2） / 3 SERVOS 90°（2） / 4 SERVOS 90°（2）
[Sub Menu]
・・・Angle Correction（3SV135° / 3SV140° / 3SV90° / 4SV90°）
-
ETC
[ ETC ]
・Video app. （Need SD Card or USB Memory）
・Calendar app.
・Clock app.
・Music app.（Need SD Card or USB Memory）
・Calculator app.
・Explorer app.
・Settings app.
[ Widget ]
・Music ・Trim ・Timer ・RX Voltage
・Flight Mode ・Altitude★ ・RPM★ ・Altitude★
・Motive Voltage★ ・Temperature★ ・Motive Current★
・Variometer★ ・Air speed★ ・TX Battery
・Telemetry Log★ ・Capacity Watt★ ・Common
★This marking shows necessity of purchasing the optional telemetry sensors.
