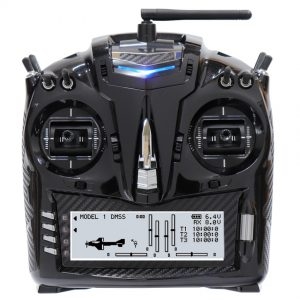

JR Propo T44 Black Pearl

• SYSTEM DMSS/Computer Mixing
• FREQUENCY 2.4GHz FH-SS Frequency hopping Spread spectrum
• Number of channel 11 channel
• Neutral position 1.5ms
• Weight of the transmitter : 960g (Includes battery)

FUNCTION LIST

• DUAL-RATE & EXPONENTIAL
• Limit Adjust
• Sub Trim
• Reverse Switch
• Servo Speed
• Program Mixing: 6 systems
• TIMER: 3 Selections
• MIXING MONITOR
• SERVO MONITOR

SYSTEM LIST

• 30-model internal memory
• Model data copy & erase ：copy (Inside TX)(Between TX and TX)(Between TX and SD card)
• Model Type Select: 3types, Heli,Acro, sailplane
• Model Name: 10characters
• Flight Mode Name
• Trim System
• Stick Position Switch
• Trim input Switch
• Stick Alert
• Transmitter Setting
  • LCD back light
  • LCD contrast
  • Idle Alert
  • Low battery warning
  • Audio Mode
  • Software version
  • Servo Hold Warning
  • Model Link Bind
  • Stick Calibration
• Trainer
• Bind and Range Check
• Telemetry System
  • Receiver battery / No Link Alarm
  • Temperature
  • Revolutions Per Minute
  • Altimeter
  • Climb Indicator
  • For Motive Power Battery(Motive Power BatteryAlarm / Nominal Capacity Value / Battery Capacity Alarm)
• All Servos Hold
• Device Select
• Swash type
• Wing Type
• Fail safe
• Throttle Stick Direction
• Stick Mode

ETC

• My list
• Touch select function
• Telemetry indication: Customs sub-information display
• Advanced Digital Trim on each flight mode
• Trainer jack
• SD card slot
• Graphic dispaly with back light LCD
• Charging circuit integrated for Li-FE battery (standard TX pack)
• Stick tension spring adjustment

AIRPLANE:

FUNCTION LIST

• Throttle Curve
• Flap System
• Snap Roll
• Differential
• AILE to RUDD MIX
• AILE to FLAP MIX
• ELEV to FLAP MIX
• RUDD to AILE/ELEV MIX
• Gyro Sensitivity
• Throttle Trim
• Throttle Hold
• Balance

SYSTEM LIST

• Wing Type
  • Flaperon
  • Delta(Elevon)
  • V-tail
  • 4 Aileron
  • Dual Aileron
  • Dual Elevator
  • Dual Rudder
  • Dual Flap
  • Twin Engine

ETC

• Flight Mode

HELICOPTER:

FUNCTION LIST

• Throttle Curve
• Pitch Curve
• Tail Curve
• Throttle Hold
• Gyro sensitivity
• Governor Setting
• MIX Throttle
• Swash Mixing
• Throttle Trim
• Flight Mode Delay

SYSTEM LIST

• Swash Type
  • 1SV Normal
  • 2SV 180゜
  • 3SV 120゜
  • 3SV 90゜
  • 3SV 140゜(135゜)
  • 4SV 90゜

ETC

• Flight Mode: 6 System

GLIDER:

FUNCTION LIST

• Flap rate
• Motor System
• Camber System
• Brake System
• Differential
• Flaperon MIX
• AILE to RUDD MIX
• ELEV to CANB MIX
• RUDD to SPOT MIX
• Balance

SYSTEM LIST

• Wing Type
  • V-Tail
  • Dual ELEV
  • Dual FLAP
  • Dual SPOI
  • Dual RUDD

ETC

• Flight Mode
• Dual Aileron
