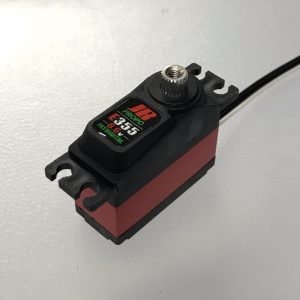

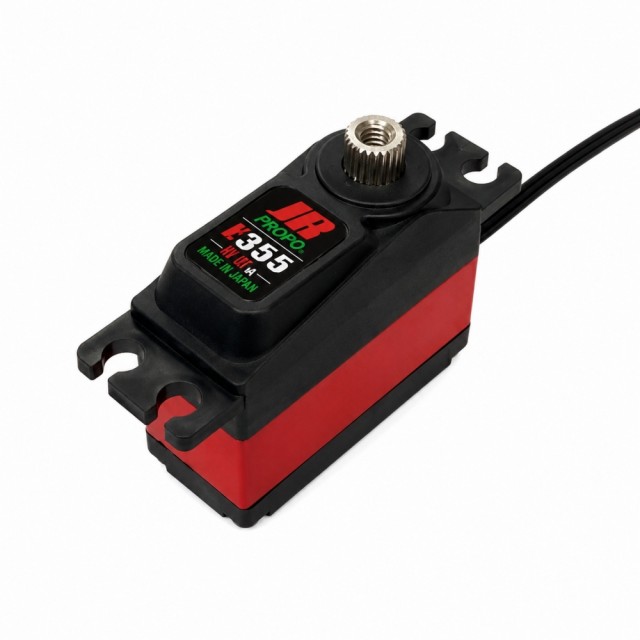

JR Propo E355 Digital mini servo

Artikkelnr.: JR77977

JR Propo E355 Economy Line Servo Series

NOK399,00 inkl. mva.
På lager: 5 stk.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

JR Economy Line Servo Series

PWM signal only. XBus is not supported.

Affordable high-performance servo. Ideal for small scale machines and sports machines.

Lithium ferrite (6.6V) is recommended.

Output spline: JR T23

Stall torque (6.6V): 3.0 kgf ･ cm / 41.7 oz-in
Speed (6.6V): 0.1 sec / 60 °
Weight: 25 g / 0.88 oz

Neutral: 1500 μS
Size: 35 × 15 × 30mm / 1.38 × 0.59 × 1.18in
Lead length: 300mm
Operating voltage: 4.8V-7.0V (Li-Fe 6.6V recommended)
■ Coreless motor
■ Full metal gear
■ Heat sink case
■ Double ball bearing
■ Operating angle: 120 °
