For 500-550 heli swash, F3A, etc
Torque: 3.8 (6.6V) / 4.3 (7.4V)) / 4.9 (8.4V) kg･cm
Speed: 0.11 (6.0V) / 0.10 (7.4V) / 0.09 (8.4V) Sec/60°

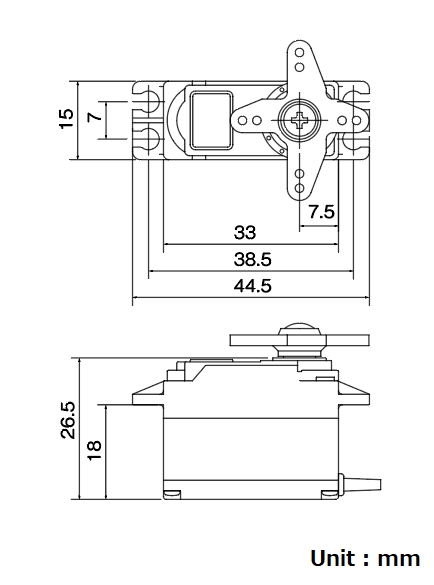

Dimension: 26.5mm x 15.0mm x 33mm
Weight: 30 g
Operating voltage: 4.5V – 8.5V
Neutral frequency: 1500μSec.
Gear F (output): Metal (AL)
Gear E: Metal
Gear D: Metal
Gear C: Metal
Gear B: Plastic
What is a 2K servo? The servo control frequency has been increased from 1kHz to 2kHz. (*Regardless of PWM connection or XBUS connection)
The doubling of the control frequency improves movement and improves responsiveness, neutral holding, and initial torque.
The occurrence of hunting has been greatly reduced, and a smoother operation feeling has been realized.
