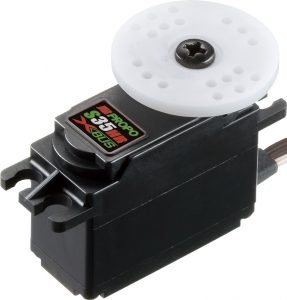

"S35HR" for 450-550 heli rudder is now available in the XBUS programmable mini servo series. It corresponds to a control cycle of up to 1 kHz and responds quickly to the gyro control signal. The computer programmable function allows you to change the holding force and damping adjustment according to the characteristics of the aircraft size.
Programmable coreless mini servo
■ XBUS programmable
■ Wide voltage
■ Double ball bearing
Torque:
・ 8.4V 3.2 kgf ・ cm / 44.1 oz-in
・ 7.4V 2.8 kgf ・ cm / 38.9 oz-in
・ 6.6V 2.5 kgf ・ cm / 34.7 oz-in
Speed:
・ 8.4V 0.04 sec / 60 °
・ 7.4V 0.05 sec / 60 °
・ 6.6V 0.06 sec / 60 °
Weight: 26 g / 0.92 oz
MPU: 32bit
Neutral: 1500 μS
Control frequency: XBUS 1kHz / PWM 333Hz
Use: For 450-550 heli rudder
Size: 26.5 x 15 x 26 mm
Lead length: 300mm
Operating voltage: 4.5V-8.5V
