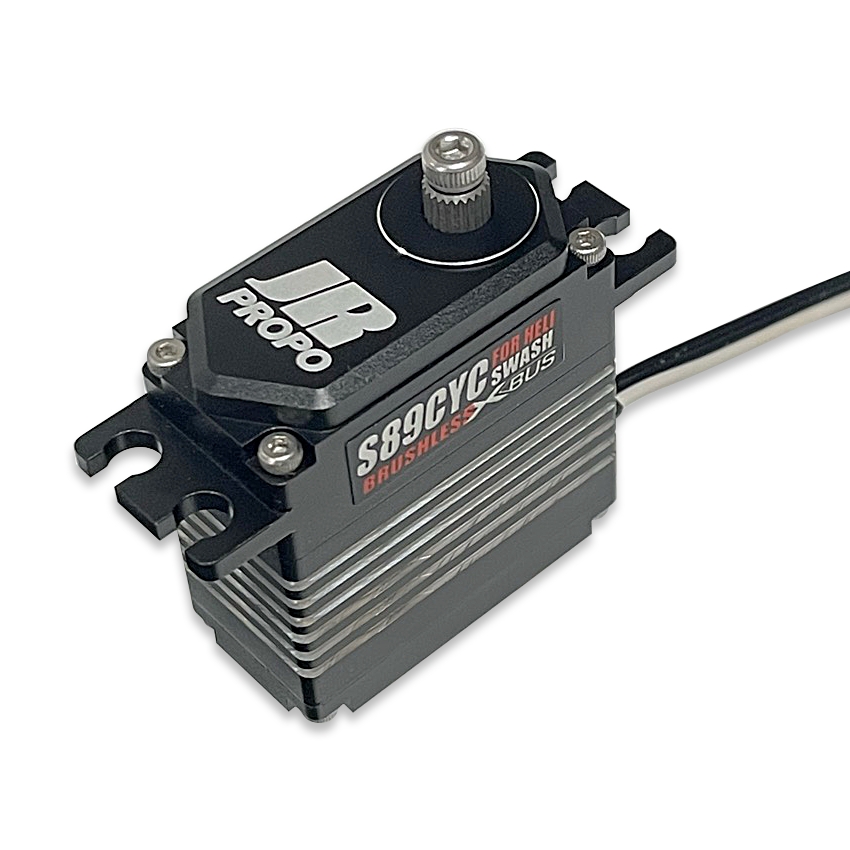

JR Propo S89CYC 2K N760 Nick Maxwell edition, Futaba spline 25T

This servo is developed in cooperation with JR Propo and Nick Maxwell!

By default this servo is set-up with 760μSec neutral. Can be changed to 1500μSec or 1520μSec with servo programmer.

Output gear with Futaba spline (25T).

Stall Torque: 21 kgs  (6.0V) / 25.9 kgs  (7.4V) / 29.0 kgs (8.4V)kg・cm

Speed: 0.11 (6.0V) / 0.10 (7.4V) / 0.09 (8.4V) Sec/60°

Weight: 80g

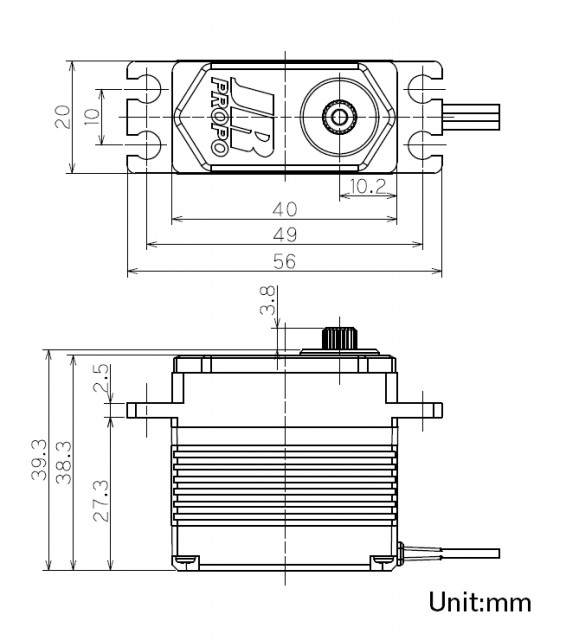

Dimension: 35 x 20 x 40.5 mm

Length of lead harness: 300mm

Operating Voltage: 4.5V - 8.5V

■Programmable: Neutral, endpoint, gain etc( works with PWM and XBUS) 120°, 150°, 180°(Works with PWM and XBUS) Synchronization (Works with PWM and XBUS)

■Super steel full metal gear (Gear B brass)
■Wide valtage
■BIG upper ball bearing (12x6) bottom ball bearing (10x6)

■Special design brushless motor
