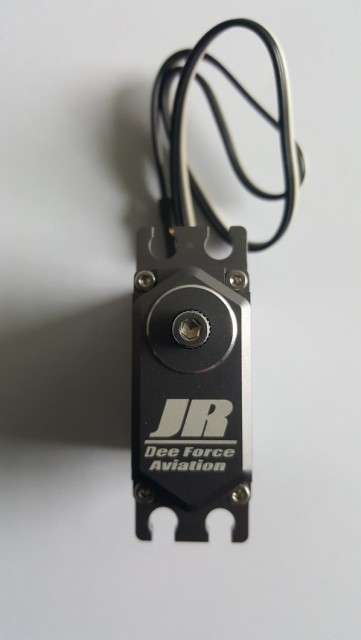

Svært rask og sterk brushless swash servo for 600-800 size fra JR Propo. Denne servoen har MYE holding power.
Servo parametre som holding, dumping, deadband og boost kan endres med JR sin Xbus servo programmerer.
Spesifikasjoner:
Stall torque: 34.2 (6.6V) /38.3 (7.4V) /43.5 (8.4V) kgcm
Speed: 0.06 (6.6V) /0.06 (7.4V) /0.05 (8.4V) Sec / 60 °
Weight: 79 g

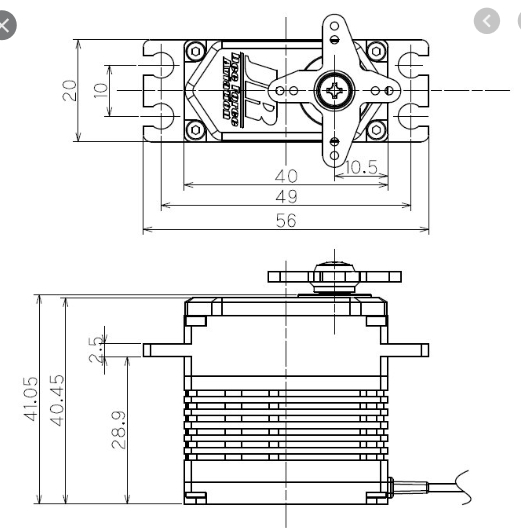

Dimensions: 40 x 20 x 40.5 mm
Lead length: 300mm
Operating voltage: 4.5V-8.5V
Neutral frequency: 1500μSec.
Control frequency: XBUS: 1KHz / PWM: 333Hz
High output brushless motor equipped
Programmable (slow start: OFF)
Full metal gear
Full metal case
Double ball bearing
Operating angle: 120 ° / 180 °
* Servo horn is sold separately
The firmware in a 2K servo verifies the position of the servo arm two thousand times each second,
while the firmware found in previous servos verify the arm's position one thousand times per second.
This greater number of verifications makes for a very precise servo, and gives it a more "solid" feel.
It is recommended to use a booster cable with 2K servos to ensure steady voltage at all times.
