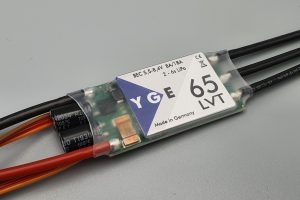

YGE 65 LVT Brushless ESC

This ESC has built in support for JR Telemetry protocol!

Perfect for 450 size helicopters.

65A cont. / 110A burst

– “T” for Telemetry. following protocols are currently compatible: Mikado Vbar Control Classic/Touch/Evo, Graupner HoTT V4, Jeti ExBUS, Multiplex Sensor BUS V2, YGE-protocol for different telemetry-connections for example via YGE TexY (Futaba, Spektrum, FrSky, Core), MSH Brain 2 or Spirit FBL

– Update capable (optional USB-Adapter available)

– entirely overhauled hard- and software (32-bit)

– the PWM-frequency will be set automatically to the requirements of the motor

– Current-limitation

– 2 to 6S LiPo

– super smooth sinus-startup

– adjustable HV-BEC from 5,5 to 8,4V

– high BEC-current rating: 8A permanent / 18A peak

– dimensions in mm: 64 x 26 x 9

– weight with / without cables: 30g / 45g

– basic settings via mode-setup

– BEC- and Telemetry-settings, as well as additional parameters adjustable via PC-Software (optional USB-adapter available)
